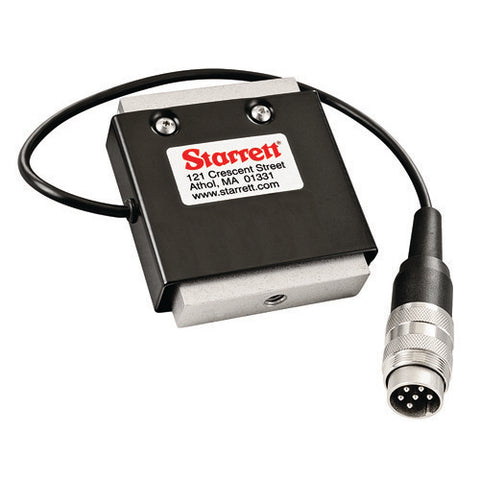

FLC-5P Load Cell Sensor

FLC-5P Load Cell Sensor

  • 2,03600

The Starrett FLC-5P is a 0N (1lbf) capacity "premium" sensor, ideal for low force applications where extra overloadprotection is required.Premium load cells feature a safe overload of 1000% of the sensor's rated capacity.The FLC Series load cell sensors are full-bridge sensors designed for force measurement applications.Our load cells are temperature compensated and have a measurement accuracy of +/-0.1% full scale throughout the entirerange of the sensor's rated capacity.FLC Series load cell sensors have been designed for use on FMS Series force measurement test frames.These sensors feature TEDS identification per IEEE 1451.4 so they are "plug & play ready".All sensor characterization and calibration data is stored within the sensor's electronics.All FLC Series load cell sensors are supplied with a NIST Certificate of Calibration with uncertainty.If the application requires, all FLC Series load cell sensors may be calibrated to ASTM E4 and ISO7500.

  • Accurate to +/-0.1% Full Scale
  • Temperature Compensated
  • Ideal for Tension or Compression Testing
  • Low Creep
  • Mechanical Overload Protection to 1000% of the rated capacity
  • Supplied with NIST Certificate of Calibration
  • Plug & Play, Self-identifying per TEDS IEEE 1451-4
  • Many be calibrated to ASTM E4 and ISO 7500

Load Cell Type S-Type
Load Capacity 5N, 1lbf, 0.5kgf
Resolution 10,000:1
Measurement Accuracy (% Full Scale) ±0.1
Nonlinearity (% Full Scale) ±0.05
Hysteresis (% Full Scale) ±0.03
Safe Overload 10
Thread Size M6 x 1-6H
Clevis Size KIT-CLEVIS15-A-M6
TEDS Identification per IEEE 1451.4
Temperature Compensated Range 0°F to 125°F, (-15°C to 50°C)
Temperature Operating Range -10°F to 175°F, (-25°C to 80°C)
NIST Traceable Certificate of Calibration Supplied Yes
