MTT01-100 Force Gauge - 100lbFin X 0.05lbFin

Mark-10 MTT01-100 Force Gauge - 100lbFin X 0.05lbFin

  • 1,61000

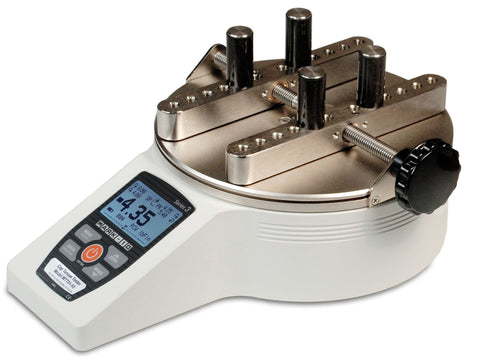

Digital Cap Torque Testers

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments. Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

  • Moveable 1.25" (31 mm) length posts accommodate a wide range of sample shapes and sizes
  • 1,000-point data memory with statistics and outputs
  • USB, RS-232, Mitutoyo, and analog output
Capacity 100lbFin
Readability 0.05lbFin
Units of Measure ozFin, lbFin, kgFcm, Nm, Ncm
Power Requirements AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Dimensions 7.8W x 4.8H x 10.7D in
Weight 10lb
